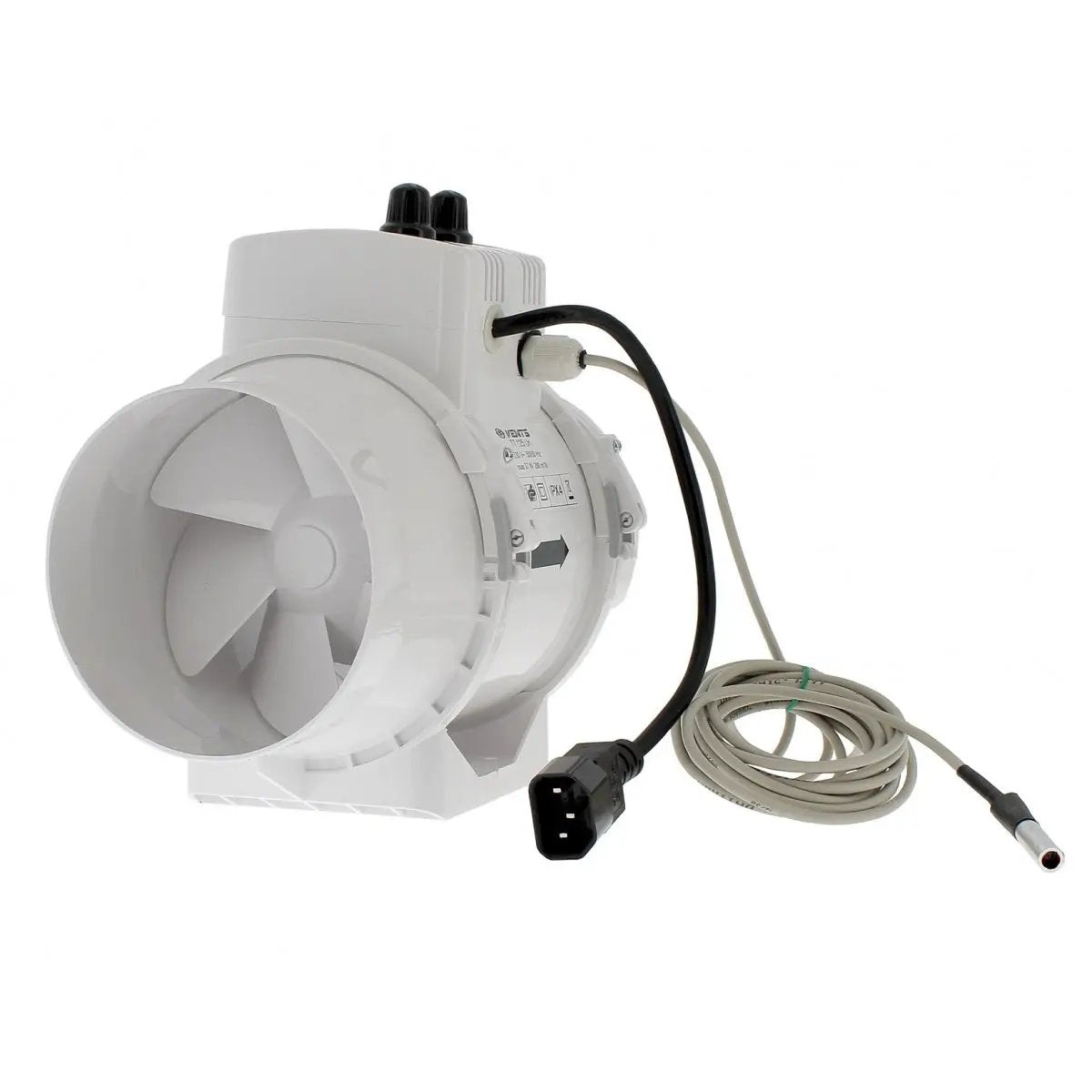

Vents TT 125 UN - (280m3/h) with thermostat - 125mm

Specifications of the TT 125 UN air extractor

The TT 125 UN air extractor is equipped with an intelligent controller that automatically adjusts the airflow based on the ambient temperature. It is ideal for ventilating various environments such as kitchens, bathrooms, cellars, workshops, restaurants, or greenhouses.

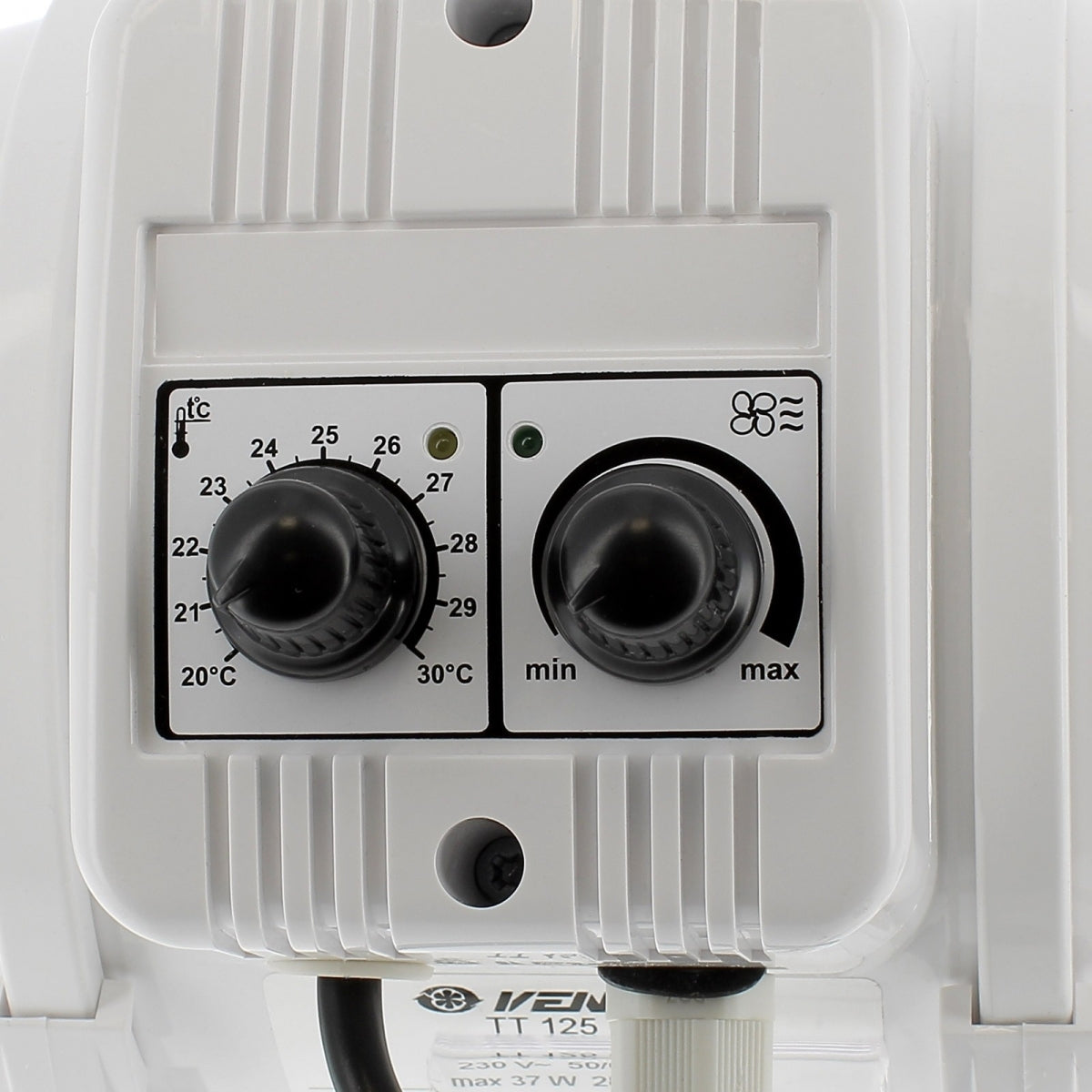

Designed for ducts with a 125 mm diameter, this extractor offers a maximum airflow of 280 m³/h. Its speed controller allows smooth regulation of the air flow between 0 and 100%, while its integrated thermostat allows setting a temperature setpoint between 20 and 30 °C.

The motor, mounted on ball bearings, is designed for 40,000 hours of operation. It has thermal protection against overheating and a corrosion-resistant plastic casing, making it perfectly suitable for humid environments. Its 4-meter temperature probe allows precise remote measurement.

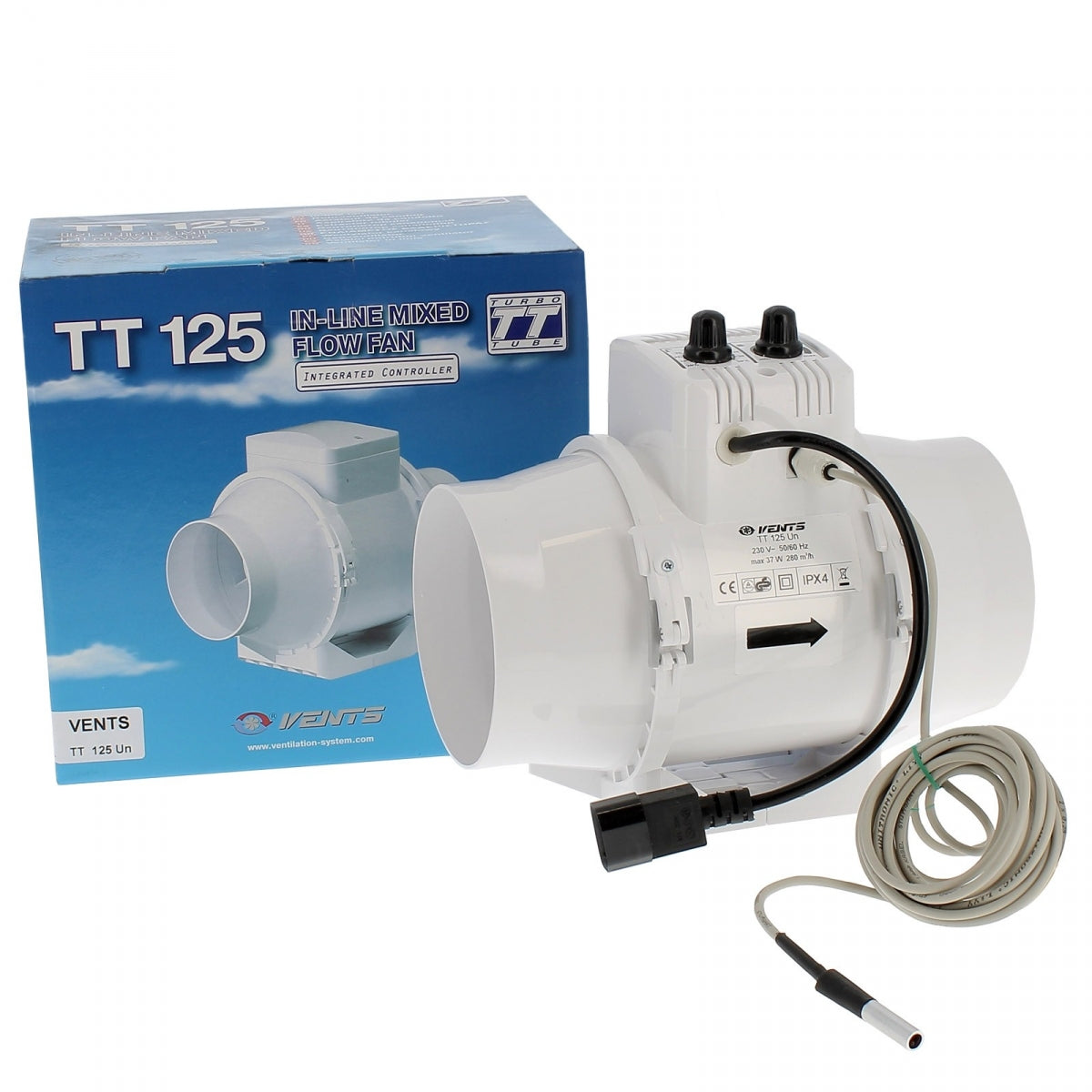

This model is delivered pre-wired with a male IEC plug. A female IEC cable is required for commissioning.

• Dimensions: 24.6 x 16.7 x 19 cm
• Flange: 125 mm
• Airflow: 280 m³/h
• Power consumption: 23 – 37 W
• Voltage: 220 – 240 V
• Weight: 1.8 kg
• Temperature probe: 4 meters
