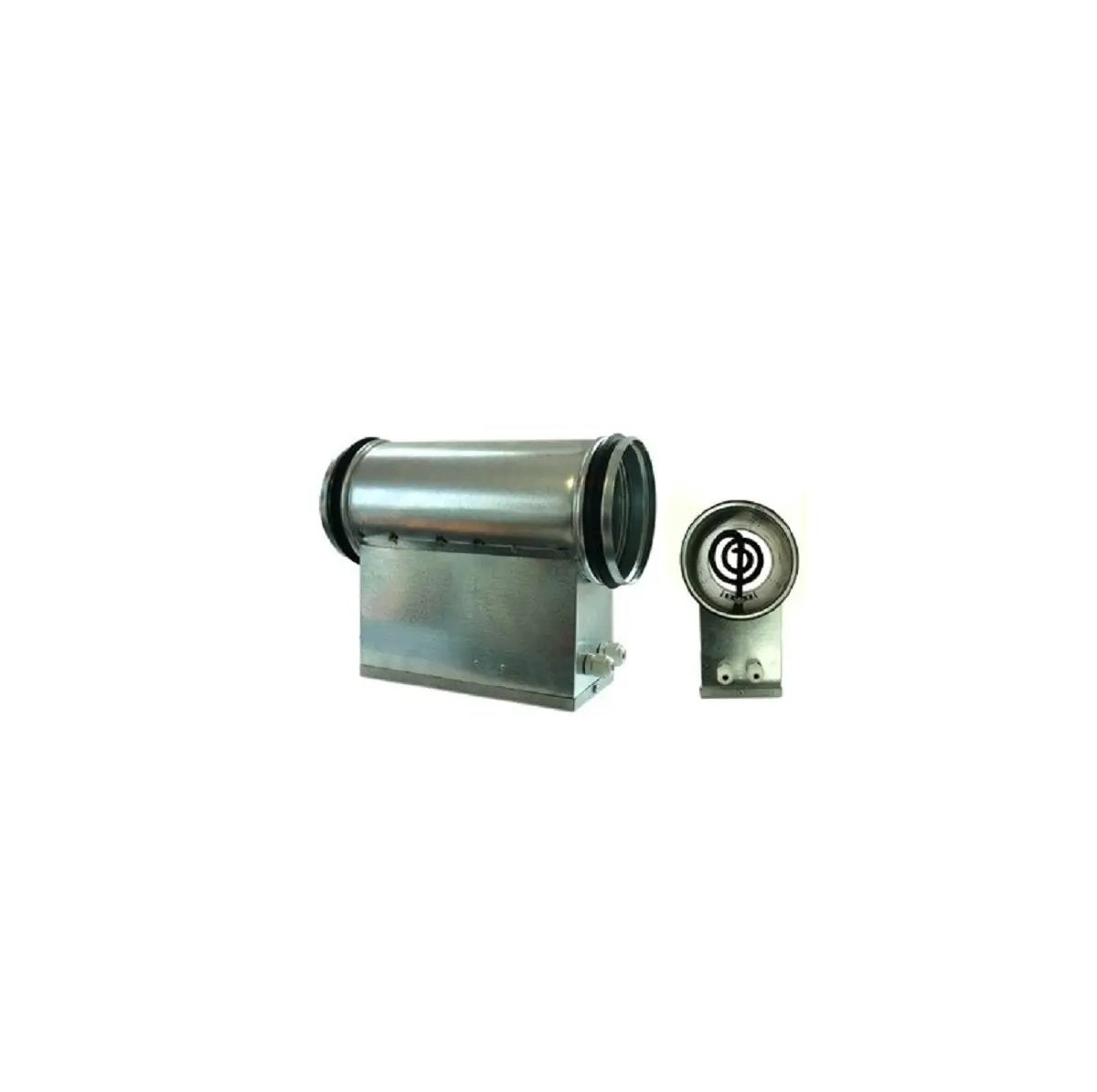

VENTS - 1200W duct heating with built-in thermostat - 150mm

Characteristics of duct heater

This duct heater 1200W for air duct with a diameter of 150mm is equipped with an internal probe and a manual thermostat. It is designed to warm the fresh air drawn into round ventilation ducts. This is a supplementary device that is not intended for use outside of ducts.

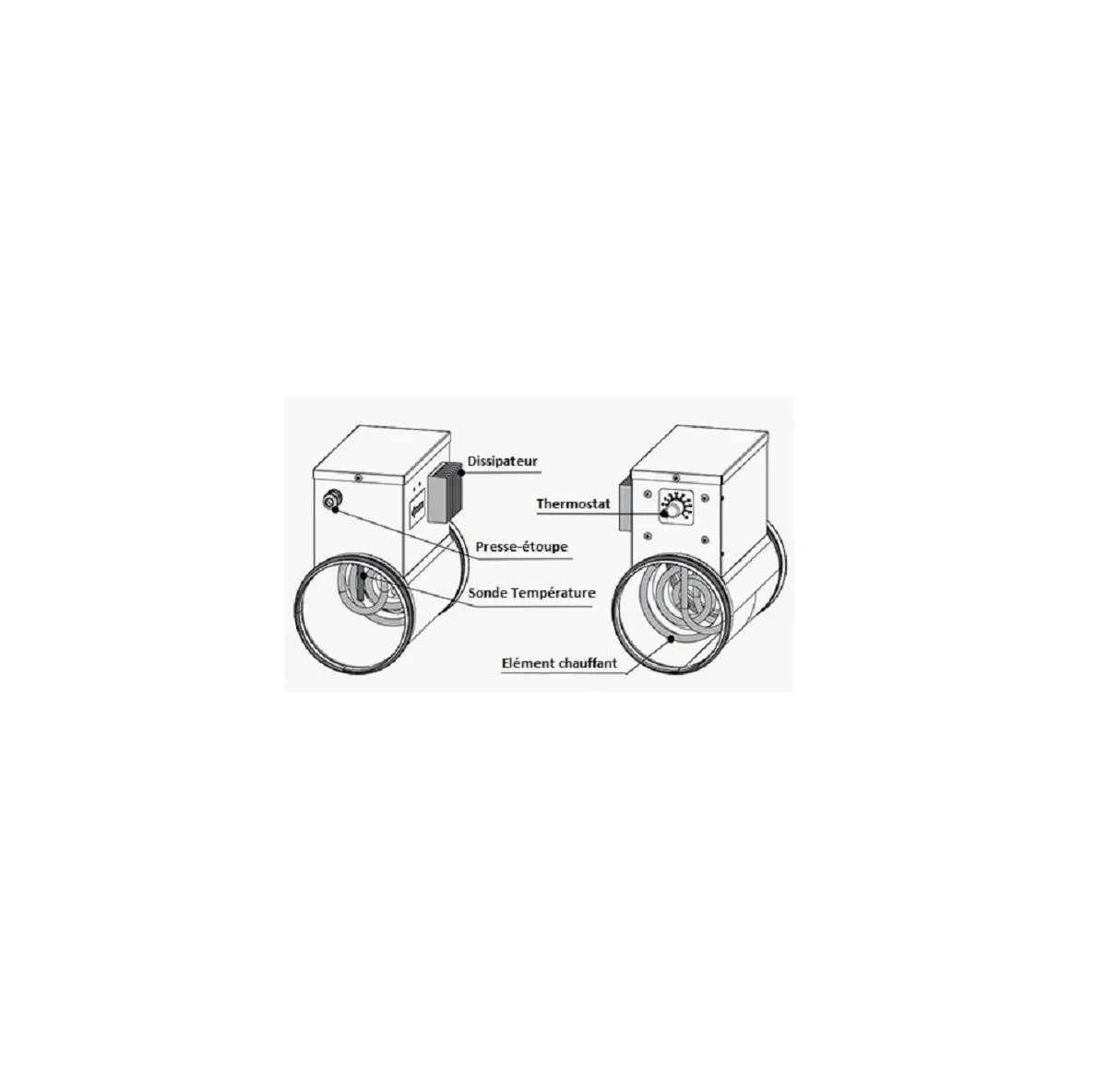

It consists of a galvanized steel frame on which the junction box, the cover of which is removable, is rigidly fixed. On the junction box, there is also the manual thermostat adjustable up to 40°C. The entries located outside the junction box allow the connection cables to be taken out for grounding. Inside the chassis is the tubular electric heating element (coil).

This coil heating element is rated for a minimum air flow speed of 1.5m/s. The manufacturer Ventilation Systems designs the use of an inlet air filter to protect the heating element from air impurities.

The manual thermal circuit breaker is equipped with a manual reset button (inside it next to the Reset label). On one of the interior sides is the electrical diagram of this heater. IP40

This heating device, which has connection outlets 150mm , is designed to be installed internally in air ducts in a horizontal or vertical position. In the horizontal position, the junction box must face upwards. The horizontal deviation can be up to 90°.

Info: The duct heater must be turned off when the ventilation system is not operating.

• Diameter: 150mm
• Power: 1200W
• Weight: 1.86kg
• Tension: 230 V
• Current: 5.2 A
• Frequency: 50 Hz
• Minimum flow rate: 120m3/h
